Description
EV-7001 is equipped with leading alert system and flexible programming rules to ease deployment according to customer needs. This advanced engine monitors all conditions and supports user defined exception-based rules to help meet the needs of the application.
EV-7001 continuously monitors the vehicle status and responds instantaneously to predefined threshold related to time, date, motion, location, Geo-zone, speed and other event combinations.

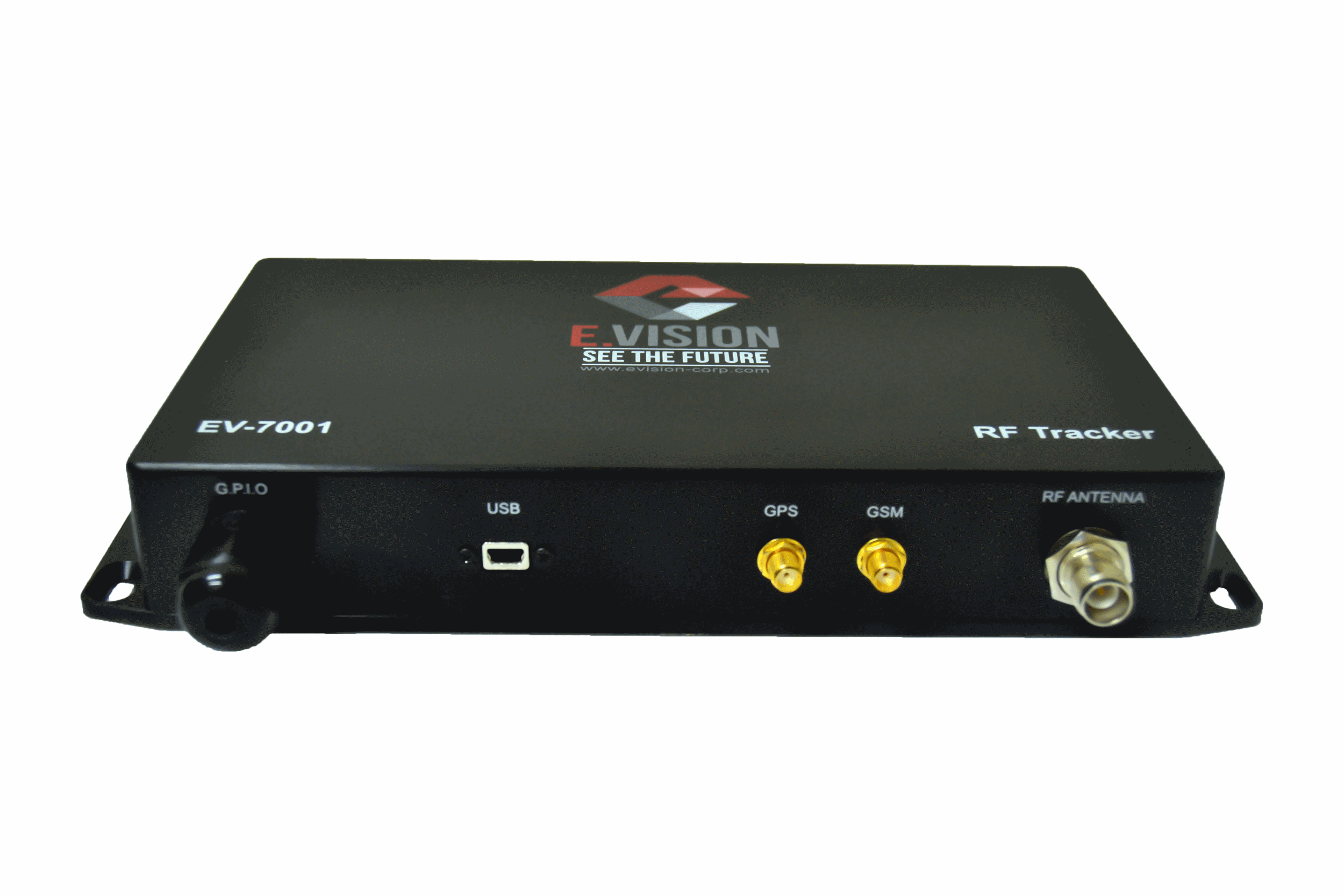

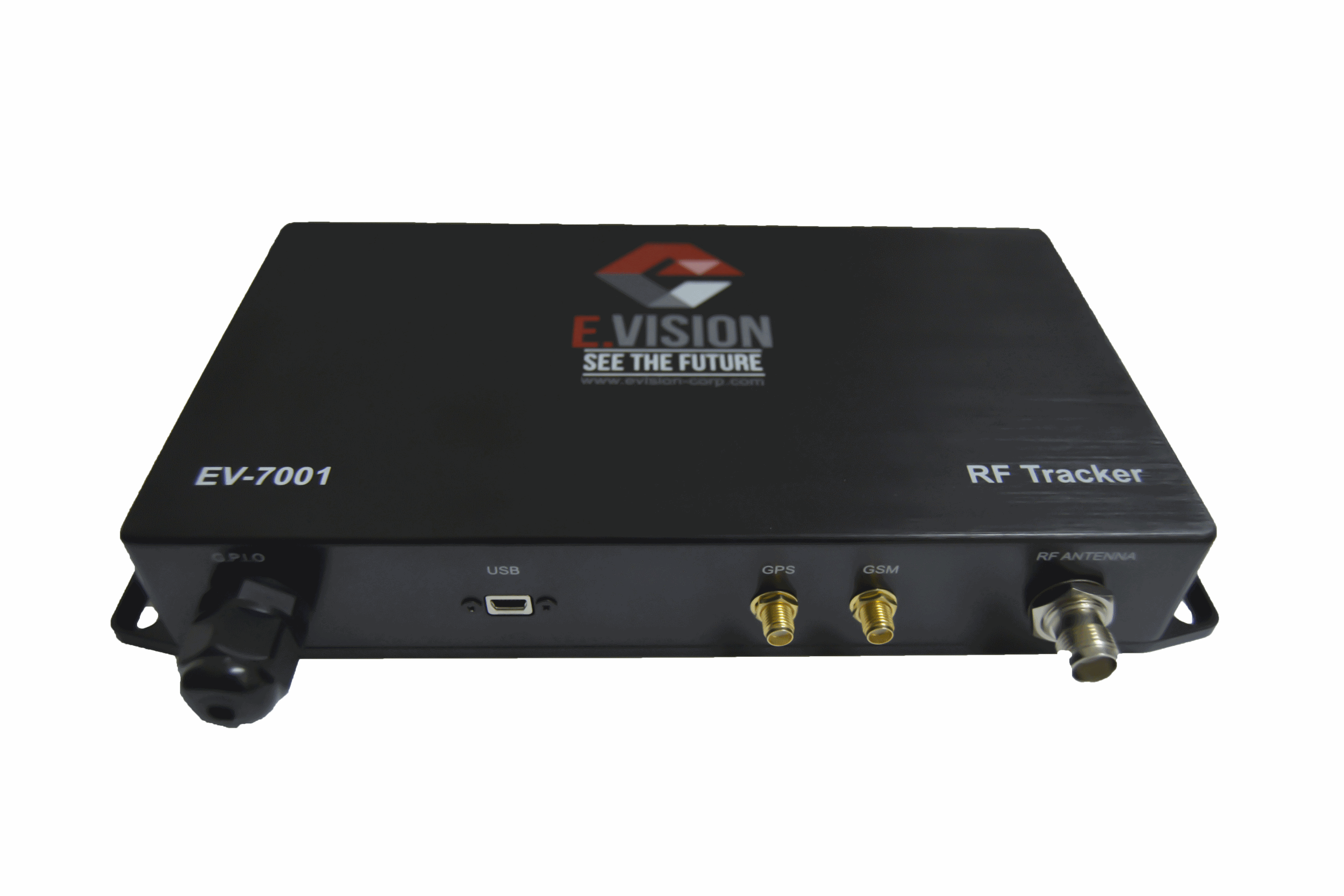

E-Vision EV-7001 is an easy plug and play GPS vehicle tracker with GNSS, 3G, NRF Connectivity with embedded RFID Reader.
EV-7001 is perfectly suitable for waste management solutions, and personal transportation solutions.
EV-7001 device designed for heavy duty and difficult environment conditions.
EV-7001 device is designed for full compatibility with over the air configuration as well as firmware updates.
EV-7001 Immediate report RFID readings to the central server once detected.
Features
- Rugged Water / Dust proof
- RFID Reader
- 2G/3G
- LTE Version (Optional)
- Online firmware updates
- Intelligent Power Management
- Geo-Fence Management
- GPS and GPRS indicator
- Wireless interface to support OBDII
- Remote Vehicle Turn-off
- Online \ Offline location
- SD for history storage
General
| Communication Modes | HSPA+, HSDPA, HSUPA, WCDMA, EDGE and GPRS networks and TCP/UDP/SMS |
| Location Technology | 16 GPS active channels and
14 GLONASS active channels |
| Operating Voltage | 12 & 24-volt vehicle systems |
Interfaces
| Digital Inputs | 5 Wires |
| Digital Outputs | 5 Wires |
| Analog Inputs | 4 Wires |
| Indicators | 4 external 3V outputs |
| SD card | Micro SD-Card Saves location history |
| USB | Water proof USB |
| GPS Antenna | SMA |
| GSM Antenna | SMA |
| OBDII Wireless Link | SMA |
| SIM Card | Internal SIM House |
| RFID Antenna | TNC |
| Power Switch | Internal On/Off Switch |
GPS
| Location Technology | 16 GPS active channels and
14 GLONASS active channels SBAS (WAAS, EGNOS and MSAS) |
| Accuracy | SBAS <2.5m CEP-50 |
| Tracking Sensitivity | -161dBm |
Waste Collection
EV-7001 supported with built-in RFID reader, is perfectly suitable for waste collection services, by attaching RFID tags to the trash bin, and equipping the waste collector with the device, indicating the loaded bins along the way.
Safe Students Transport
Employing GPS and RFID technologies is a perfect mix to indicate the on-board students based on RFID breslate Tags. With predefined configuration to generate alerts if there is student on board and bus engine off.
